The Tianqi 4×4 Heavy-Duty Armored Vehicle is engineered for maximum survivability and mobility in high-threat environments. With a 12,000kg combat weight and 2,000kg payload capacity, it delivers critical troop transport and firepower support while excelling in extreme terrains.

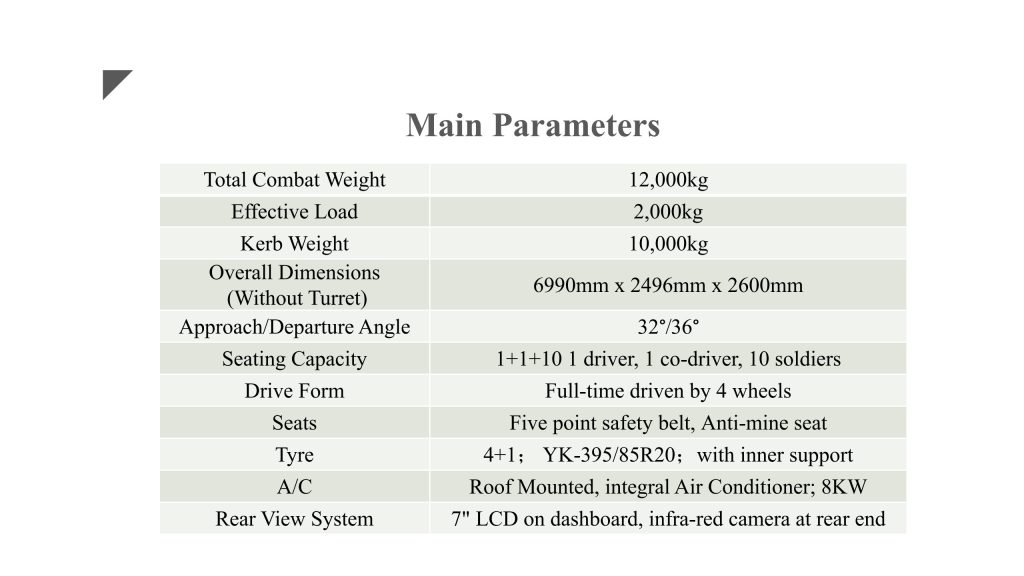

Core Specifications
Parameter
Value
Overall Dimensions
6990×2496×2600mm

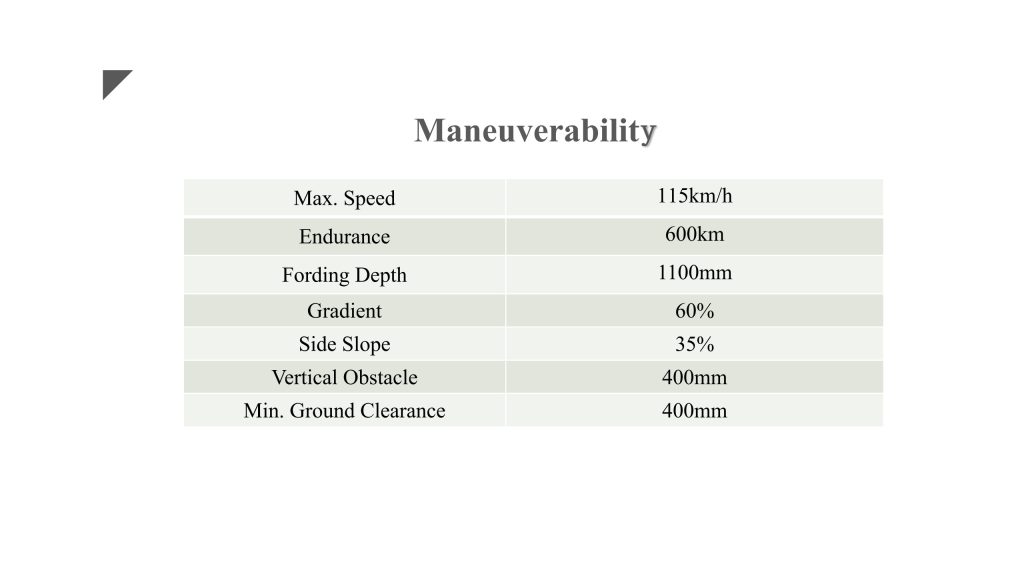

Max Speed
115 km/h
Fording Depth
1100 mm
Gradient/Side Slope
60% / 35%
Seating Capacity
1 Driver + 1 Co-driver + 10 Soldiers
Endurance Range
600 km
Operating Temp
-41°C to +46°C
Key Takeaway: Vertical obstacle clearance of 400mm allows traversal of urban rubble and natural barriers.

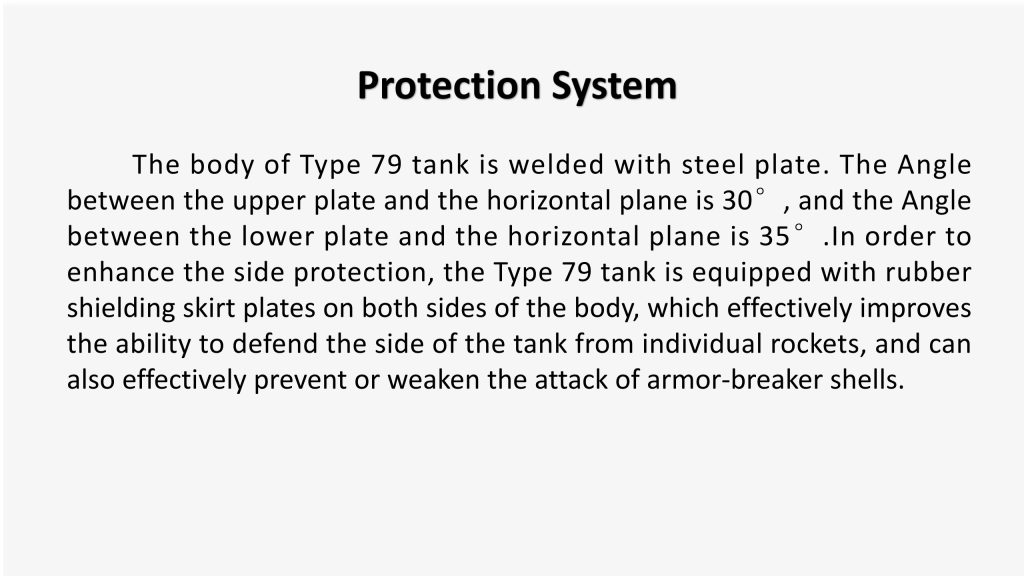

Combat Proven: Rubber shielding skirt plates enhance RPG protection – a feature adopted from Type 79 tank technology.
Weapons Integration
(Source: Page 6) The 360° Automatic Weapon Station enables precision engagement:
Flexible Armament
Mounts 12.7mm MG + 35mm grenade launcher
Quick-swap capability for mission-specific weapons
Smart Targeting
Built-in camera with pitch adjustment (15° to 75°)
Dual-servo motor drive for <0.21mil accuracy
Recoil Management
Axial shock absorber protects moving mechanisms
Operator Advantage: In-car controller allows firing without exposure (Page 6).

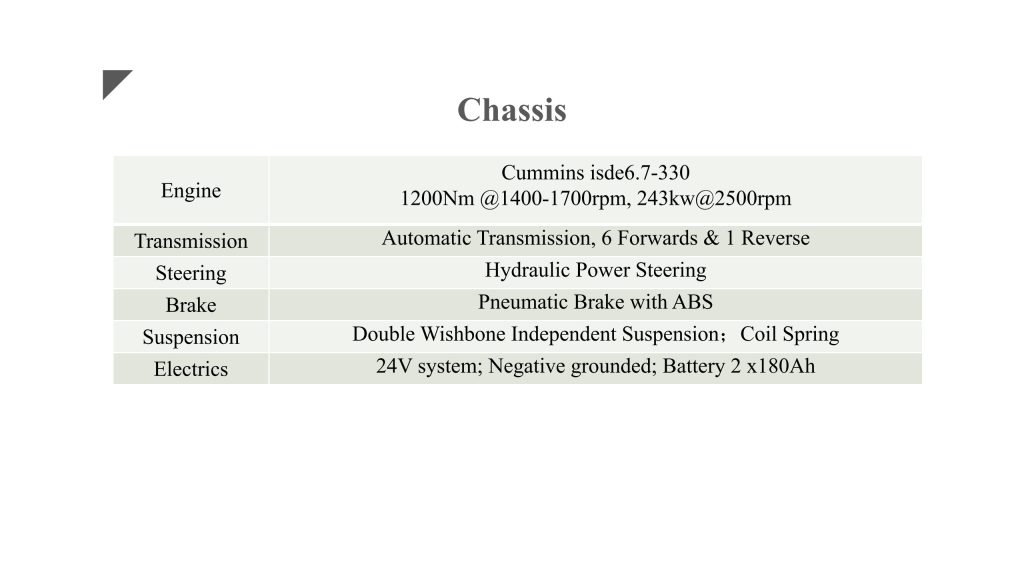

Chassis & Mobility Systems
Powerhouse Performance:
Engine: Cummins ISDEF6.7-330
243kW @ 2500rpm / 1200Nm torque
Transmission: 6-speed automatic
Suspension: Double wishbone independent + coil spring
Critical Systems:
Pneumatic ABS brakes
Central tire inflation system (optional)
24V dual-battery (2×180Ah) electrical system
Tactical Deployment Scenario
Mission: Urban Combat Extraction
Infiltration
Navigate 35° side slopes and 400mm barriers
Threat Engagement
Rotate weapon station 360° while moving
Exfiltration
Cross 1.1m flooded zones at 30km/h
Counter-Detection
Infrared camera + LCD rear-view system for night ops

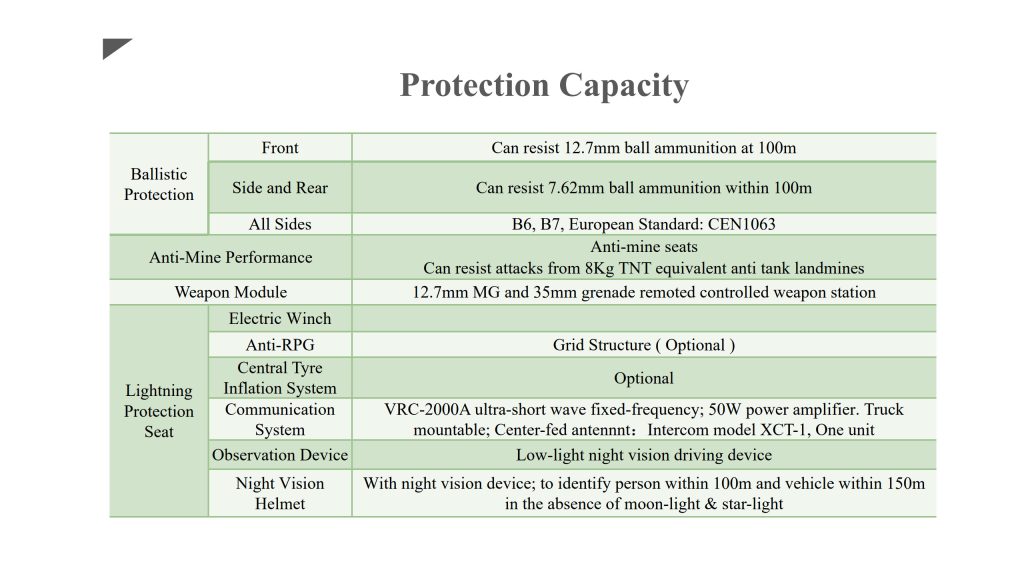

“The Tianqi 4×4’s fusion of B7-level armor and mine protection sets a new standard for tactical vehicles in conflict zones.” – ZZ Defense Systems Engineer

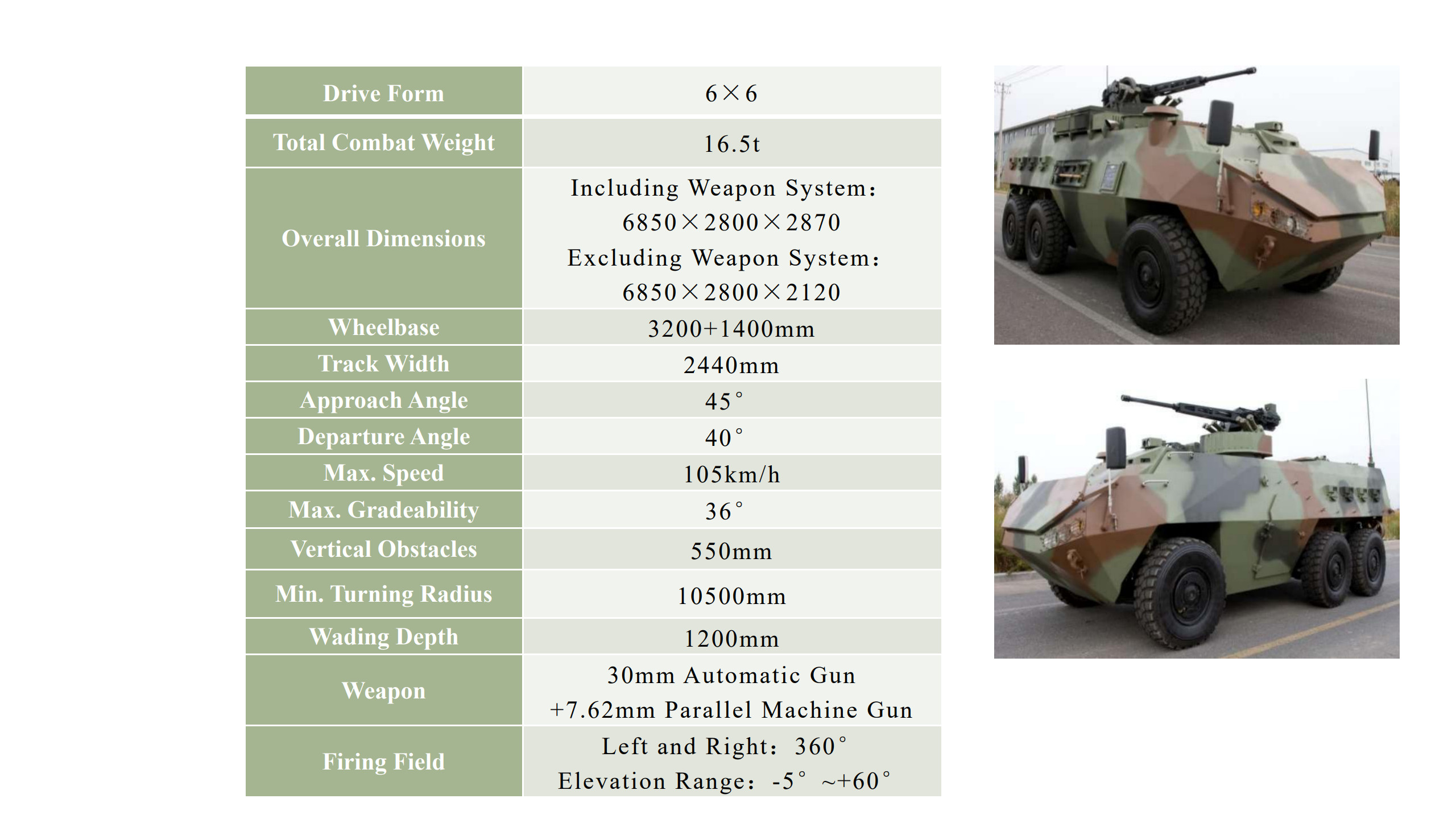

Explore Next: Tomorrow’s feature on the 6×6 Infantry Combat Vehicle with 30mm autocannon capabilities.
Article ID: AR-20240802-TQ4X4 Content Source: ZZ Product Manual (EN), Word Count: 420 | Read Time: 2 min
