Military Mortars Overview
Military mortars remain one of the most effective indirect fire support systems used by modern armed forces. ZCZZ DEFENSE manufactures 60mm, 82mm, and 120mm military mortars designed for infantry support, rapid deployment, high-angle fire missions, and battlefield operations. Our mortar systems provide reliable performance, excellent mobility, and compatibility with a wide range of military applications.
Military mortars are widely deployed by infantry units because they provide rapid indirect fire support with high mobility and operational flexibility. Compared with traditional artillery systems, mortar weapons can be transported quickly, deployed within minutes, and deliver accurate fire support in mountainous terrain, urban combat environments, and defensive operations. Modern mortar systems are available in multiple calibers, including 60mm, 82mm, and 120mm configurations, allowing military forces to select the appropriate platform for different mission requirements. ZCZZ DEFENSE provides reliable mortar systems manufactured to strict quality standards for international military procurement programs.

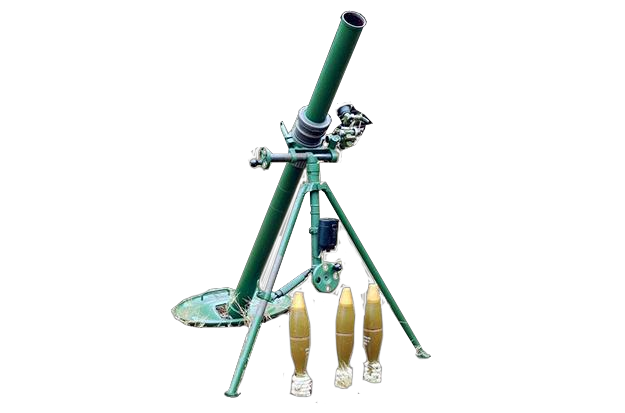

Type PP93 60MM Mortar
The Type PP93 60MM Mortar is a lightweight infantry mortar developed for rapid deployment and close fire support. It offers high mobility while delivering effective indirect fire against enemy personnel and defensive positions.
Military Mortars Technical Specifications
| Parameter | Specification |
|---|---|
| Caliber | 60.75 mm |
| Full Mortar Weight | 22.4 kg |
| Mortar Body Weight | 9.4 kg |
| Carriage Weight | 5.8 kg |
| Sight Weight | 0.48 kg |
| Grenade Weight | 2.18 kg |
| Effective Killing Radius | 17.8 m |
| Muzzle Velocity | 329 m/s |
| Maximum Firing Range | 5564 m |
| Maximum Firing Rate | 20 rounds/min |
Type AM16 60MM Light Mortar
The Type AM16 60MM Light Mortar is a highly portable mortar system designed for infantry squads requiring rapid maneuverability and immediate fire support in complex terrain.
Technical Specifications
| Parameter | Specification |
|---|---|
| Caliber | 60.75 mm |
| Full Weapon Weight | 12.5 kg |
| Grenade Weight | 1.326 kg |
| Muzzle Velocity | 134 m/s |
| Effective Killing Radius | 15 m |
| Minimum Firing Range | 200 m |
| Maximum Firing Range | 1490 m |
Type W87 82MM Mortar
The Type W87 82MM Mortar provides medium-range indirect fire support with excellent balance between mobility and firepower. It is suitable for infantry battalions and rapid-response forces.
Technical Specifications
| Parameter | Specification |
|---|---|
| Caliber | 82 mm |
| Full Weapon Weight | 39.7 kg |
| Mortar Body Weight | 15.5 kg |
| Carriage Weight | 8.7 kg |
| Baseplate Weight | 15.5 kg |
| Grenade Weight | 4.2 kg |
| Muzzle Velocity | 265 m/s |
| Maximum Firing Rate | 30 rounds/min |
| Minimum Firing Range | 120 m |
| Maximum Firing Range | 4660 m |
Type W86 120MM Mortar
The Type W86 120MM Mortar is a heavy mortar system designed for long-range indirect fire support against enemy troops, defensive positions, and fortified targets. It offers high explosive effectiveness and sustained battlefield firepower.
Technical Specifications
| Parameter | Specification |
|---|---|
| Caliber | 120 mm |
| Full Combat Weight | 206 kg |
| Full Marching Weight | 291 kg |
| Carriage Weight | 27 kg |
| Baseplate Weight | 91 kg |
| Grenade Weight | 13.8 kg |
| Muzzle Velocity | 341 m/s |
| Maximum Firing Rate | 20 rounds/min |
| Minimum Firing Range | 400 m |
| Maximum Firing Range | 7700 m |
Military Mortars Key Features
- Complete mortar family from 60mm to 120mm
- Lightweight, medium, and heavy mortar systems
- High-angle indirect fire capability
- Rapid deployment and battlefield mobility
- Effective suppression of enemy personnel and fortified positions
- Suitable for infantry, battalion, and artillery support units
- Reliable operation under demanding battlefield conditions
Applications
These mortar systems are suitable for:
- Infantry fire support
- Indirect fire missions
- Area suppression
- Defensive operations
- Border security
- Mountain and complex terrain warfare
- Battalion and brigade fire support
- Military modernization and government procurement programs
Contact Us
We supply military mortar systems, infantry mortars, heavy mortars, and indirect fire support weapons for government agencies, armed forces, and authorized defense organizations worldwide. Contact us for product catalogs, technical specifications, export information, and procurement support.
FAQ（直接复制）
What calibers of military mortars do you supply?
We supply 60mm, 82mm, and 120mm military mortar systems for infantry fire support and indirect fire missions.
Are your mortar systems suitable for military procurement?
Yes. Our mortar systems are designed for government, military, and authorized defense procurement projects.
What are the advantages of 120mm mortars?
120mm mortars provide greater firing range, higher explosive power, and improved battlefield support compared with smaller calibers.
Do you provide OEM manufacturing services?
Yes. ZCZZ DEFENSE supports OEM and customized production for qualified international defense customers.
