Portable Through-Wall Radar System Overview
Modern tactical operations often require security personnel to obtain situational awareness before entering enclosed environments. Whether conducting hostage rescue, urban operations, law enforcement missions, or emergency response, the ability to detect human presence behind walls significantly improves operational safety and decision-making.
The Zhongcheng Portable Through-Wall Radar System is designed to provide real-time detection and imaging of moving and stationary targets hidden behind non-metallic obstacles. Utilizing advanced microwave imaging technology and intelligent signal processing algorithms, the system delivers accurate target positioning while maintaining excellent portability for rapid field deployment.
Compact, lightweight, and easy to operate, the radar is suitable for military forces, special police units, border security, and emergency rescue organizations.
Portable through-wall radar systems are widely used for military operations, special police units, border security, hostage rescue, urban combat, and emergency response missions. ZCZZ DEFENSE provides advanced wall penetrating radar systems featuring real-time target detection, accurate positioning, compact portable design, and reliable performance for professional tactical applications.
Applications of Portable Through-Wall Radar Systems
Portable Through-Wall Radar Systems are widely used by military units, law enforcement agencies and emergency rescue organizations for tactical reconnaissance in enclosed environments.
Typical applications include:
- Urban warfare operations
- Counter-terrorism missions
- Hostage rescue
- Border security
- Building reconnaissance
- Search and rescue
- Disaster response
- Special police operations
The system enables operators to detect human movement, breathing and positioning through walls without direct visual contact, improving operational safety and decision-making.
Product Overview
The Portable Through-Wall Radar integrates high-resolution imaging technology with advanced signal processing algorithms to detect personnel concealed behind walls, doors, rubble, and other non-metallic structures.

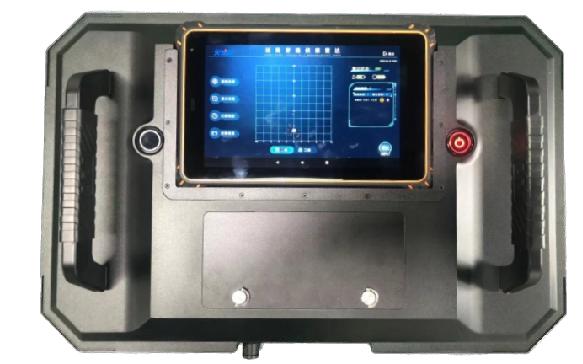

Designed as a fully portable solution, the radar combines a lightweight antenna array, integrated processing unit, and detachable control terminal into a compact field-ready system that can be carried and operated by a small team.
The system supports rapid deployment in urban environments where direct visual observation is impossible.
Portable Through-Wall Radar System Key Features
High-Resolution Through-Wall Imaging
Advanced imaging algorithms generate clear detection results through common building materials, allowing operators to identify hidden personnel without direct line of sight.
Real-Time Target Detection
The radar continuously tracks both moving and stationary human targets, providing rapid updates that improve tactical awareness during dynamic operations.
Multi-Target Tracking
The system is capable of detecting and tracking multiple targets simultaneously, allowing operators to evaluate complex indoor environments before entry.
Lightweight Portable Design
The compact integrated structure enables quick deployment by tactical teams operating in urban environments, disaster sites, or remote locations.
Intelligent Signal Processing
Adaptive filtering and multi-resolution processing improve detection accuracy while reducing environmental interference.
Flexible Operation
The detachable display terminal supports convenient field operation and rapid deployment with minimal setup time.
Portable Through-Wall Radar System Technical Advantages
The radar combines several advanced technologies to improve operational performance.
FMCW Radar Technology
Frequency-Modulated Continuous Wave (FMCW) technology enables high detection sensitivity while maintaining stable imaging quality over extended operating periods.
Micro-Doppler Analysis
Micro-Doppler processing enhances the ability to distinguish human movement from background interference, improving detection reliability in complex environments.
High Detection Sensitivity
Optimized antenna design and intelligent processing algorithms provide stable performance across a variety of construction materials.
Localized Signal Processing
Core processing modules utilize integrated embedded architecture to improve system reliability and reduce power consumption during prolonged missions.
Typical Applications
The Portable Through-Wall Radar is suitable for numerous tactical and public safety missions, including:
- Military urban operations
- Special police tactical teams
- Hostage rescue
- Counter-terrorism operations
- Border security
- Building searches
- Disaster rescue
- Earthquake response
- Law enforcement
- Critical infrastructure protection
Typical Deployment Scenarios
Portable Through-Wall Radar Systems are suitable for a wide range of tactical and emergency operations.
Typical deployment scenarios include:
- Urban combat operations
- Counter-terrorism missions
- SWAT team operations
- Hostage rescue
- Border checkpoint inspection
- Building clearance
- Search and rescue after earthquakes
- Disaster response operations
- Critical infrastructure protection
Main Specifications
| Parameter | Specification |
|---|---|
| Detection Capability | Personnel behind non-metallic walls |
| Detection Distance | ≥30 m (moving targets) / 20 m (stationary targets) |
| Azimuth Coverage | ≥120° |
| Pitch Coverage | 60° |
| Response Time | ≤5 s (moving targets) |
| Positioning Accuracy | ±0.5 m |
| Maximum Simultaneous Targets | 5 |
| Detection Probability | ≥90% |
| Battery Endurance | ≥4 hours |
| Weight | ≤6 kg |
| Protection Rating | IP65 |
| Operating Temperature | −40°C to +65°C |
| Communication | Encrypted Wi-Fi |
| Control Terminal | 7.9-inch Display |
Performance Advantages
The Portable Through-Wall Radar System is designed to provide reliable situational awareness before entering enclosed structures. Compared with conventional reconnaissance methods, wall penetrating radar significantly improves operator safety while reducing operational uncertainty.
Key operational advantages include:
- Rapid target detection within seconds
- Real-time monitoring of moving and stationary targets
- Improved officer safety before room entry
- Reduced operational risks during tactical missions
- Portable deployment by a single operator
- Reliable operation in complex urban environments
- Enhanced decision-making through live target information
Why Choose Zhongcheng Through-Wall Radar
The Zhongcheng Portable Through-Wall Radar provides reliable target detection, accurate positioning, and real-time situational awareness for tactical personnel operating in complex environments. Its lightweight design, advanced imaging capability, and rapid deployment characteristics make it an effective solution for military, law enforcement, and emergency response organizations requiring non-line-of-sight detection capability.
Designed for demanding field conditions, the system delivers a practical balance of portability, performance, and operational reliability while supporting safer and more informed tactical decision-making.
Explore our complete Military Support Equipment portfolio for additional tactical systems, defense equipment, and mission support solutions.
Need technical specifications? Contact our team.
Request OEM manufacturing or export quotations through our Request for Quote page.
Learn more about Through-wall radar technology and its operational principles.
FAQ
What is a portable through-wall radar system used for?
Portable through-wall radar systems are used for tactical surveillance, hostage rescue, urban operations, law enforcement, and military missions.
Can through-wall radar detect human movement?
Yes. Advanced radar systems can detect moving and stationary human targets behind non-metallic walls.
Do you provide OEM through-wall radar systems?
Yes. ZCZZ DEFENSE provides OEM manufacturing and customized tactical radar solutions.
Is the system suitable for military procurement?
Yes. Our portable through-wall radar systems are designed for military, police, border security, and government procurement projects.
Procurement & OEM Support
ZCZZ DEFENSE supports international defense procurement projects with flexible manufacturing and customized solutions.
Available services include:
- OEM manufacturing
- Customized branding
- Software localization
- Technical documentation
- International logistics support
- Project-based configuration
- Government procurement support
Packaging & Delivery
Each Portable Through-Wall Radar System is securely packed for international transportation.
Standard delivery includes:
- Main radar unit
- Rechargeable battery
- Battery charger
- Carrying case
- User manual
- Optional accessories according to customer requirements
Packaging methods and shipping arrangements can be customized for military procurement projects.
