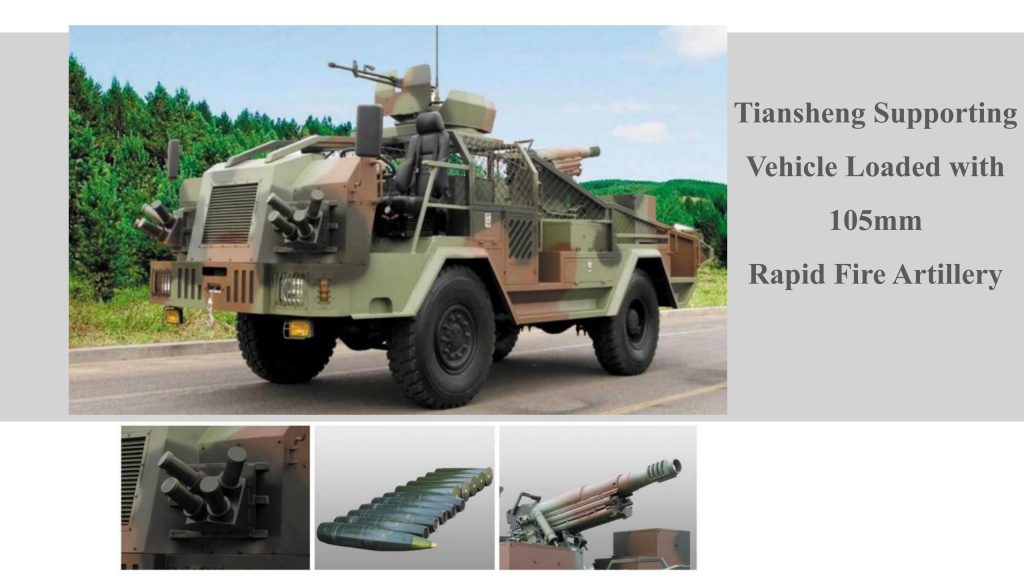

Tiansheng Fire Support Vehicle Overview
The Tiansheng Fire Support Vehicle is a highly mobile tactical platform integrating a 105mm rapid fire artillery system with a rugged four-wheel-drive armored chassis. Designed for rapid deployment and direct fire support, the vehicle combines battlefield mobility, crew protection, and reliable firepower in a compact platform suitable for modern military operations.
Featuring long operational range, excellent off-road capability, and integrated support equipment, the vehicle is ideal for border security, rapid response forces, convoy escort, and expeditionary missions where both mobility and firepower are essential.
Tiansheng Fire Support Vehicle Main Specifications
| Parameter | Specification |
|---|---|
| Combat Weight | 12,000 kg |
| Payload | 1,500 kg |
| Kerb Weight | 10,500 kg |
| Dimensions (L×W×H) | 6800 × 2480 × 2580 mm |
| Approach / Departure Angle | 27.5° / 30.8° |
| Seating Capacity | 1 Driver + 1 Commander + 3 Operators + 12 Soldiers |
| Drive Configuration | Full-time 4×4 |
| Tires | Anti-blast Off-road Tires |
Mobility Performance
| Parameter | Specification |
|---|---|
| Maximum Road Speed | 105 km/h |
| Driving Range | 1,500 km |
| Fording Depth | 1,100 mm |
| Maximum Gradient | 60% |
| Side Slope | 35% |
| Vertical Obstacle | 400 mm |
| Ground Clearance | 400 mm |
Powertrain
| Parameter | Specification |
|---|---|
| Engine | Deutz TBD226B Euro II Inline 6-cylinder Diesel |
| Maximum Power | 240 HP @ 2500 rpm |
| Maximum Torque | 860 Nm @ 1400–1700 rpm |
| Clutch | Dry Single Plate, Hydraulic Operation with Pneumatic Booster |
| Transmission | 9 Forward + 1 Reverse |
| Steering | Hydraulic Power Steering |
| Brake System | Pneumatic Brake System with ABS |
| Electrical System | 24V Negative Ground, Dual 180Ah Batteries |
Standard Equipment
The vehicle is supplied with a comprehensive range of operational accessories, including:
- 889F Radio
- IR510 Communication Terminal
- Multi-purpose Ammunition Box
- 25L Water Tank
- 25L Fuel Tank
- Sapper Shovel
- Pickaxe
- Sapper Axe
- Trailer Bar
Key Features
- Highly mobile 4×4 tactical fire support platform
- Integrated 105mm rapid fire artillery system
- Long operational range up to 1,500 km
- Excellent off-road mobility for complex terrain
- High payload capacity for mission equipment
- Hydraulic power steering with ABS braking system
- Spacious crew compartment for multi-role operations
- Reliable diesel powertrain with proven field performance
- Equipped with comprehensive mission support accessories
- Suitable for rapid deployment and expeditionary missions
Applications
The Tiansheng Fire Support Vehicle is designed for:
- Direct fire support
- Rapid reaction forces
- Border security missions
- Convoy escort
- Expeditionary operations
- Tactical fire support
- Military patrol missions
- Internal security operations
Tiansheng Fire Support Vehicle Battlefield Performance
The Tiansheng Fire Support Vehicle is designed to provide highly mobile direct fire support for modern mechanized units. Equipped with a powerful 105mm rapid fire artillery system and a protected armored chassis, the vehicle combines mobility, firepower, and operational flexibility for demanding battlefield environments.
Its four-wheel-drive configuration allows rapid deployment across paved roads, rough terrain, and remote operational areas. The Tiansheng Fire Support Vehicle is suitable for rapid reaction forces, convoy escort, defensive operations, fire support missions, and battlefield reinforcement where mobile artillery capability is required.
Conclusion
Combining mobility, endurance, and powerful direct-fire capability, the Tiansheng Fire Support Vehicle provides an effective solution for modern tactical operations. Its robust 4×4 chassis, reliable diesel powertrain, and integrated 105mm rapid fire artillery system enable military forces to deploy quickly while maintaining outstanding battlefield mobility and sustained combat effectiveness.se, operational flexibility, and sustained combat effectiveness.
Looking for more armored vehicle solutions? Explore our Armored Vehicles collection.
Need technical specifications or project consultation? Contact our team.
Request pricing, export information, or customization options? Submit a Request for Quote.
Learn more about main battle tanks on Wikipedia.
FAQ
What weapon system does the Tiansheng Fire Support Vehicle use?
Answer:
The Tiansheng Fire Support Vehicle is equipped with a 105mm rapid fire artillery system designed to provide accurate and effective direct fire support during military operations.
Is the Tiansheng Fire Support Vehicle suitable for off-road operations?
Answer:
Yes. The Tiansheng Fire Support Vehicle features a rugged four-wheel-drive armored chassis that provides reliable mobility across highways, rough terrain, and challenging operational environments.
What missions is the Tiansheng Fire Support Vehicle designed for?
Answer:
The Tiansheng Fire Support Vehicle is suitable for direct fire support, rapid deployment, convoy escort, border security, defensive operations, and mechanized combat missions.
What are the advantages of the Tiansheng Fire Support Vehicle?
Answer:
The Tiansheng Fire Support Vehicle combines powerful 105mm firepower, armored crew protection, excellent battlefield mobility, and rapid deployment capability into a highly flexible tactical platform.
