Introduction

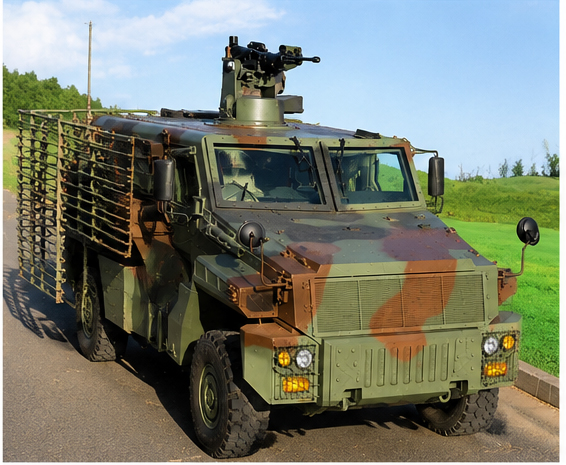

The Tianqi 4×4 Heavy-duty Armored Vehicle is a protected tactical platform developed for troop transportation, border security, peacekeeping, reconnaissance, and combat support missions. Combining high mobility, advanced protection, and modular weapon integration, it is designed to operate effectively in demanding battlefield environments.
Built on a full-time four-wheel-drive chassis, the vehicle provides excellent cross-country capability while protecting personnel against ballistic threats and landmine explosions. The platform also supports remote weapon stations, battlefield communications, and various mission-specific equipment, making it suitable for modern military and law enforcement operations.
The Tianqi 4×4 Heavy-Duty Armored Vehicle is suitable for military, police, border security, peacekeeping and special operations. It combines high mobility, strong protection and flexible mission configuration into one reliable tactical platform.
Tianqi 4×4 Heavy-Duty Armored Vehicle Key Features
- Full-time 4×4 drive system
- High ballistic protection
- Anti-mine protected seating
- Remote-controlled weapon station
- Independent suspension for superior mobility
- Automatic transmission
- Roof-mounted 8KW air conditioning
- Infrared rear-view camera
- Optional anti-RPG cage armor
- Optional central tire inflation system
Tianqi 4×4 Heavy-Duty Armored Vehicle Specifications
| Item | Specification |
|---|---|
| Total Combat Weight | 12,000 kg |
| Effective Load | 2,000 kg |
| Kerb Weight | 10,000 kg |
| Overall Dimensions | 6990 × 2496 × 2600 mm (without turret) |
| Approach / Departure Angle | 32° / 36° |
| Seating Capacity | 1 Driver + 1 Co-driver + 10 Soldiers |
| Drive Form | Full-time 4×4 |
| Seats | Five-point safety belt, Anti-mine seats |
| Tires | 4+1 YK-395/85R20 with run-flat inner support |
| Air Conditioning | Roof-mounted integral 8KW air conditioner |
| Rear View System | 7-inch LCD display with infrared rear camera |
Mobility Performance
The Tianqi platform provides outstanding off-road mobility for tactical missions.
| Item | Specification |
|---|---|
| Maximum Speed | 115 km/h |
| Driving Range | 600 km |
| Fording Depth | 1100 mm |
| Maximum Gradient | 60% |
| Side Slope | 35% |
| Vertical Obstacle | 400 mm |
| Minimum Ground Clearance | 400 mm |
Chassis and Powertrain
The vehicle adopts a heavy-duty military chassis powered by a Cummins diesel engine.
| Item | Specification |
|---|---|
| Engine | Cummins ISDe6.7-330 |
| Power Output | 243 kW @ 2500 rpm |
| Maximum Torque | 1200 Nm @ 1400–1700 rpm |
| Transmission | Automatic, 6 Forward + 1 Reverse |
| Steering | Hydraulic Power Steering |
| Brake | Pneumatic Brake with ABS |
| Suspension | Double Wishbone Independent Suspension with Coil Spring |
| Electrical System | 24V Negative Ground, 2 × 180Ah Batteries |
Protection System
The Tianqi Heavy-duty Armored Vehicle is designed to protect personnel against ballistic threats and explosive attacks.
Ballistic Protection
- Front armor resists 12.7 mm ball ammunition at 100 meters
- Side and rear armor resists 7.62 mm ball ammunition within 100 meters
- B6 / B7 protection level
- European Standard CEN1063
- These protection features improve crew survivability during modern battlefield operations while maintaining excellent vehicle mobility.
Mine Protection
- Anti-mine seats
- Resistant to explosions equivalent to 8 kg TNT anti-tank mines
- The V-shaped structure and anti-mine seating reduce blast impact and improve crew safety during mine incidents.
Weapon Module
- Compatible with 12.7 mm heavy machine gun
- Compatible with 35 mm remote-controlled grenade launcher
- The modular weapon station can be configured according to different operational requirements and customer preferences.
Optional Equipment
- Electric winch
- Anti-RPG grid armor
- Central tire inflation system
- VRC-2000A communication system
- Low-light night driving device
- Night vision helmet capable of identifying personnel within 100 m and vehicles within 150 m under extremely low-light conditions
- Optional mission equipment allows operators to customize the platform for reconnaissance, convoy escort, internal security and peacekeeping missions.
Automatic Weapon Station
The optional remote-controlled weapon station provides enhanced firepower while keeping the crew protected inside the vehicle.
Key capabilities include:
- 360° rotation
- Elevation angle from 15° to 75°
- Built-in aiming camera
- Remote control from inside the vehicle
- Supports machine guns and grenade launchers
- Dual-servo motor drive for precise aiming
- Axial shock absorber reduces recoil impact
- Optional day camera, thermal imaging, laser range finder, and high-magnification optics
- Lightweight aluminum alloy construction
Tianqi 4×4 Heavy-Duty Armored Vehicle Applications
The Tianqi 4×4 Heavy-duty Armored Vehicle is suitable for:
- Military troop transportation
- Border patrol
- Peacekeeping operations
- Counter-terrorism
- Special operations
- Convoy escort
- Internal security missions
- Rapid reaction forces
Conclusion
Combining excellent mobility, comprehensive ballistic protection, mine resistance, and flexible weapon integration, the Tianqi 4×4 Heavy-duty Armored Vehicle offers a reliable tactical solution for modern military and security organizations. Its modular design allows operators to adapt the platform to a wide variety of operational requirements while maintaining high survivability and battlefield effectiveness.
